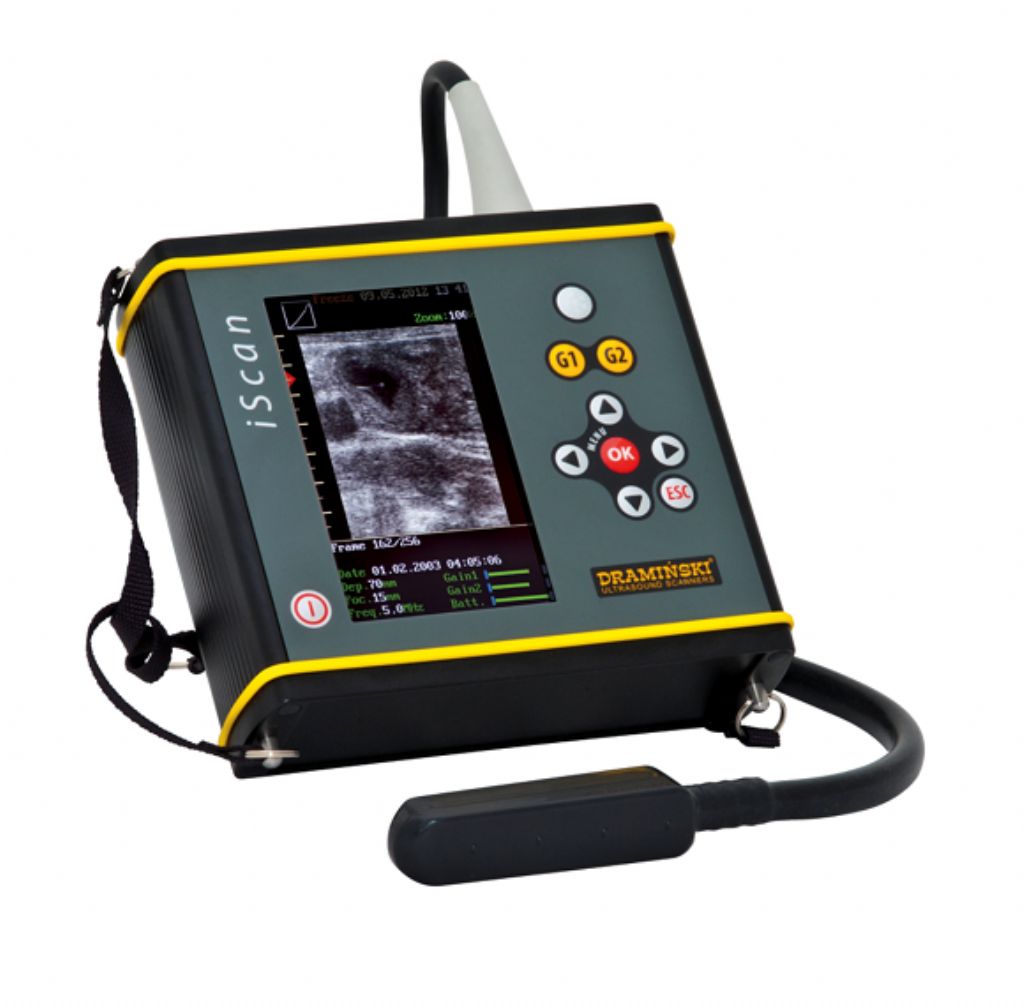

DRAMINSKI iScan VETERINARY ULTRASOUND DEVICE

DRAMINSKI iScan VETERINARY ULTRASOUND DEVICE
Ultra light, ultra mobile, ultrasound scanner iScan.

The iScan DRAMINSKI is an absolutely revolutionized ultrasound scanner to be used in the field! It was created thanks to miniaturization of the electronic systems and the use of efficient power supply. When designing the project and implementing the suggested solutions we consulted with veterinary doctors in order to create the DRAMINSKI iScan the most adjusted to your needs and situations which take place in the field.

Portable ultrasound scanner with goggles, light goggles, comfortable ultrasound glasses, ultrasound goggles, LCD goggle

This time our newest model of ultrasound video goggles is more comfortable, with excellent adjustment on the user’s head. If you examine a lot of animals in a row or work in very light rooms, these goggles with clear, legible image will make your work more comfortable.

Comfort and high standard of work is guaranteed by:
  • Five-point system of adjustment: the head circumference, depth, height, angle of inclination and setting of the distance between the goggles and the eyes,
  • Removable cover of the forehead part of the goggles (easy to clean)P
  • Colourful display,
  • Resolution 640x480,
  • Excellent, clear image,
  • Excellent visibility of the surroundings during your work (safety of work).
TECHNICAL SPECIFICATION:
Weight scanner – 1720 g
battery – 280 g
Dimensions 17 cm x 17 cm x 6.5 cm
Electronic probe:Linear 7.5 MHz (frequency range 4-9 MHz), 96 crystals
Scanning range to 4, 5, 6, 7, 8, 10, 12 cm
Screen vertical, LED LCD 5”
Display modes B, B+B, B+M
Power supply external battery
Working time: 5 hours
Charging time:2 hours 30 minutes
Cine-Loop up to 256 frames (20 sec.)
PC transmission via USB
