ECORAY ULTRA 200A X-RAY DEVICE

ECORAY ULTRA 200A X-RAY DEVICE

5kW Mobile X-ray unit-Compact, Smooth and Powerful (110kV, 200mAs) ULTRA 200 / 200A will be an answer for your long-term question on portable X-ray. Get an ideal X-ray solution for your ER purposes as well as a secondary mobile choice.



Features:

  • 5kW single body (110kV / 200mAs)
  • Stoppable tube handle
  • 180 ° Lateral carrying handle
  • 360 ° rotational wheels
  • Automatic SID screen
  • Version can be upgraded DR



Technicial Specifications:

  • Input Power: 200~240VAC (50/60Hz)
  • Output Power: 5kW Monobloc
  • kV Range: 40 - 110kV (1kV Step)
  • mAs Range: 0.32mAs – 200mAs
  • X-ray Tube: Canon / DF-183
  • Focal Spot: 1.8mm
  • Anode Heat Storage Capacity: 28KJ
  • Maximum anode cooling rate: 265W
  • LED Lamp: More than 130 lux
  • Net Weight: 197kg    166kg
  • Size (W x L x H):  634 x 810 x 1,546mm

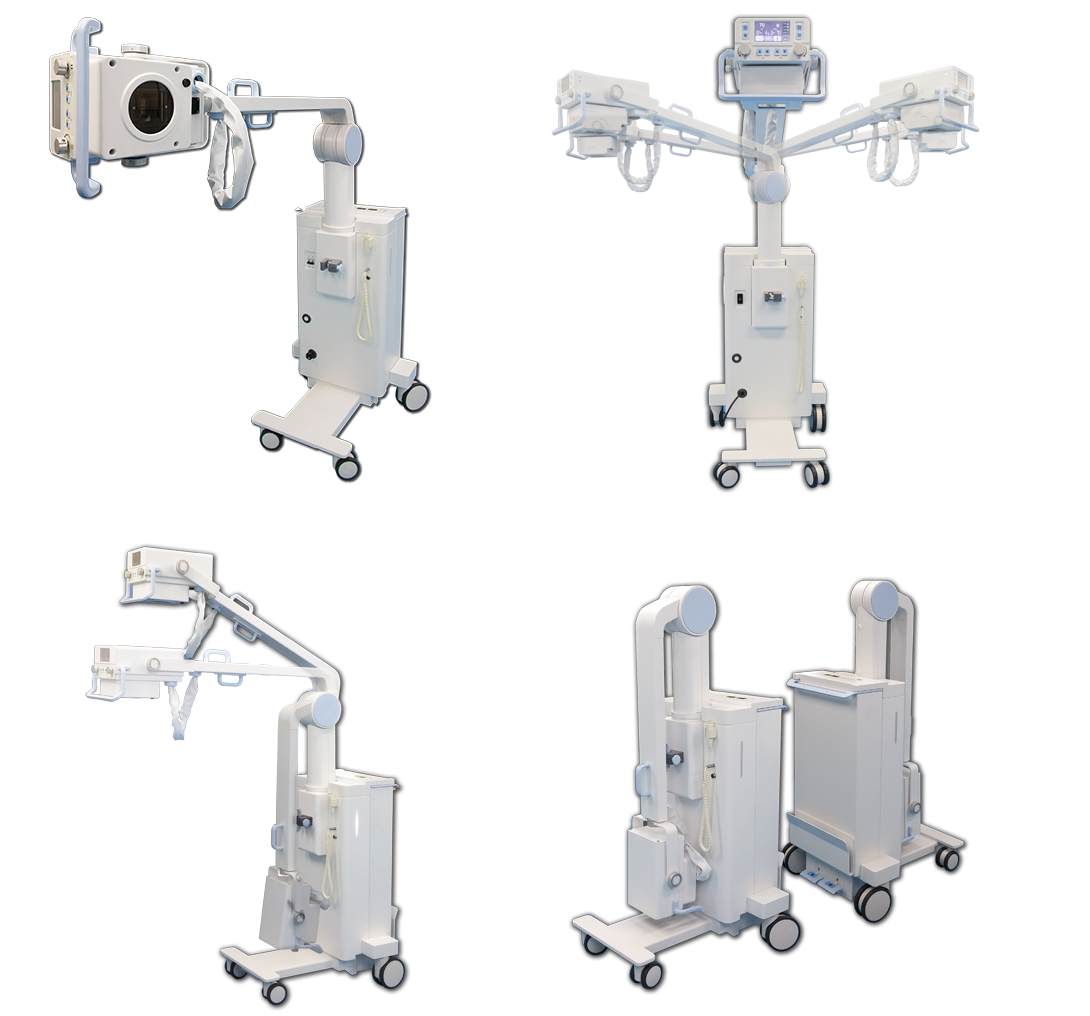

data-cke-saved-src=/dosyalar/images/ecoray-ultra-200A-mobil-rontgen.pngRICH FUNCTIONALITY

  • LCD touch screen
  • Automatic collimator that can be adjusted to desired size
  • Automatic SID with ultrasonic sensors
  • Easy to adjust DR solution compatible with tablet



BENEFITS

Ultra 200 / 200A is a mobile X-ray which it can be used in Hospital and Clinics(ICU, Patient room, or ER room etc.) With its 360︒ Rotational Wheels, operator will easily move the unit. After reaching to a place where X-ray will be used, internal break structure has been applied for safety as it can cause risk of injuries for operating personnel, With 180︒ lateral arm movement, operator can set any direction of desired position. After relocating the head part where X-ray shall be generated, free stop arm will stop by simply releasing. Any other extra lock is not required.



TOUCH LCD MONITOR

Overhead touch screen shows auto SID (ultrasonic sensor), APR and various functions. You can adjust radiation parameters (kV, mAs) on the touch screen. Easy look and touch will make the functions ready to perform. Motorized collimator shuttering knobs are providing quick and accurate field of radiation change.



UPGRADABLE DR

ECORAY supports local DR application with table PC pocket. Win10 based PC is useful for DR flat panel detector communication, and ECORAY has its own DR console software in Tablet PC with a 3543 size wireless panel. The console SW EcoviewTM performs clear imaging solution with DICOM compatibility and other functions. This DR combination is giving comfortable organization on your desk and ULTRA 200 / 200A.



Power Options: ULTRA 200: Rechargeable batterydata-cke-saved-src=/dosyalar/images/ecoray%2Dx%2Dray%2Dhasvet%2Dmedical.png
                            ULTRA 200 1: AC phase (alternating current)

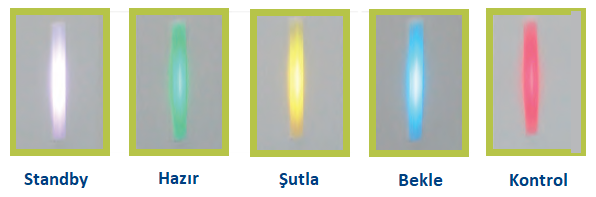

The status of the X-ray is indicated by the color of the LED light. Thus, it is error-free and easy to use.
