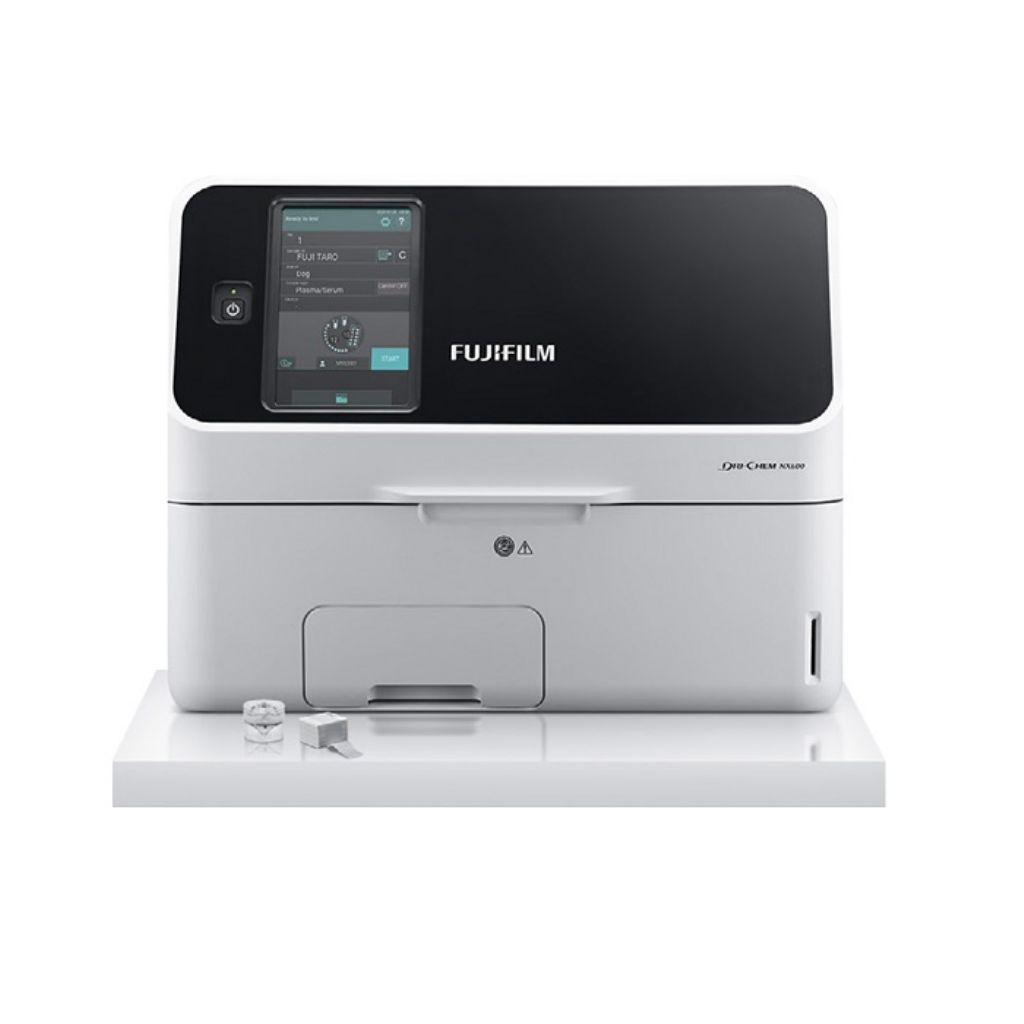

FUJI DRI-CHEM NX600V IC FULLY AUTOMATIC VETERINARY BIOCHEMISTRY DEVICE

FUJI DRI-CHEM NX600V IC FULLY AUTOMATIC VETERINARY BIOCHEMISTRY DEVICE
  • 23 colorimetry tests + 3 electrolyte tests (Na, K, Cl), inflammatory marker c-CRP tests and 18 months shelf life QC cards with the Japanese signature on technology and ease of use
  • Easy to use with the possibility of placing consumables for more than one test at a time
  • Automatic pipetting and automatic dilution
  • Minimum 120 colorimetry tests per hour, 128 combined tests
  • Measurement Time: Colorimetry 2 - 6 min/Test, Electrolytes 1 min/3 test (Na, K, Cl)
  • Sample Type: Plasma, Serum, Whole blood
  • Sample Amount: Colorimetry 10µL/ test, Electrolytes 50µL/ 3 tests (Na, K, Cl)
  • Large and advanced 7-inch touchscreen
  • Na/K, Anion GAP, ALT/AST, BUN/CRE, ALB/Glob, Globulin calculations
  • Sliding cover design that provides both space saving and ease of use
  • Built-in thermal printer
  • Software integration
  • Data Transfer to Computer: RS 232C (1 port), USB (2 ports), LAN (1 port)
  • Size: 470 x 360 x 370mm (WxLxH)
  • Weight: Approx. 27 kg
  • Operating Temperature: 15-32°C
  • Operating Humidity: 30 - 80% RH


IC CUP technology for quality plasma
1) IC CUP (Internal centrifuge cup)
Blood cells with a higher specific gravity than the separating medium are separated and retained on the outside of the separating medium after centrifugation. only the plasma passes through the channel and accumulates at the bottom of the vessel after separation.
2) Pipette
Placement of whole blood in IC CUP. A special pipette comes with the IC CUP.
