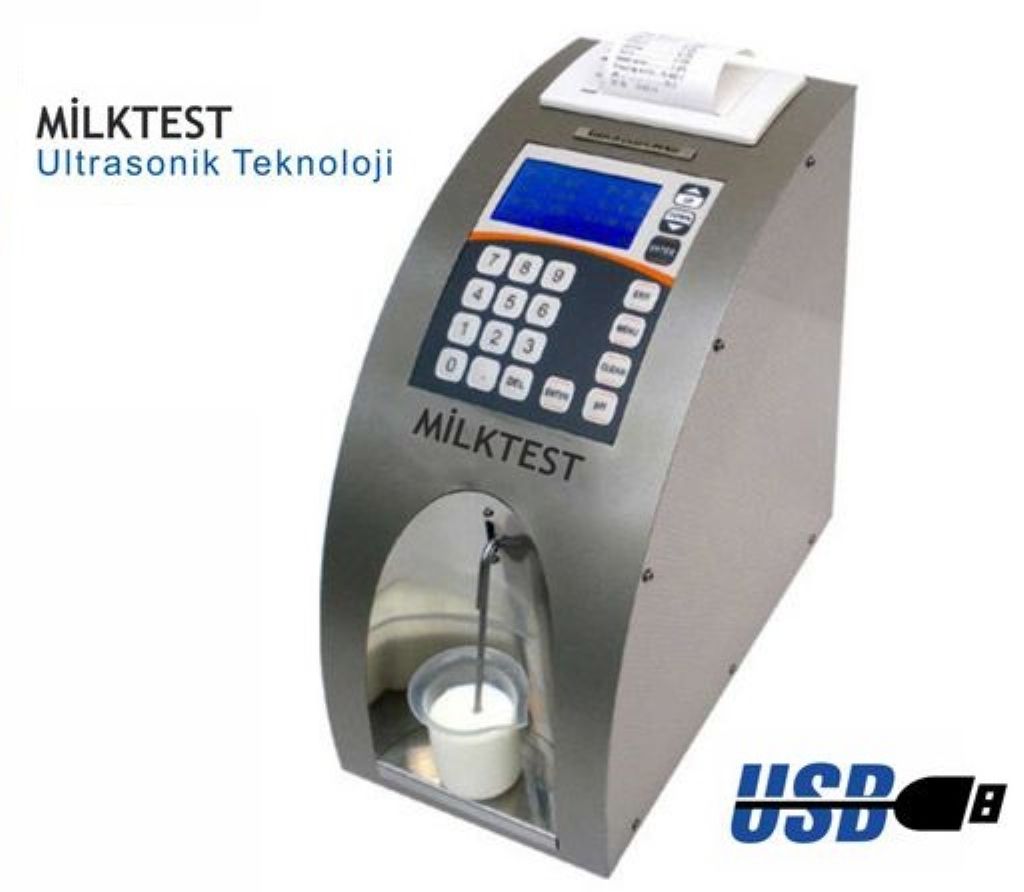

HASVET MILK ANALYSER

HASVET MILK ANALYSER

Features:

  • User-friendly: simple in operation, maintenance, calibration and installation
  • Portable and compact design
  • Very small quantity of milk required
  • Low power consumption
  • No use of hazardous chemicals
  • One year full waranty
  • Measuring accuracy adjustment can be done by the user RS 232 Interface
  •  ESC POS Printer Support
  • Two samples self-calibration

Environmental Conditions:
Ambient air temperature: 10°C - 40°C (option 43°C)
Milk temperature: 1°C - 40°C
Relative humidity: 30% - 80%

Electrical Parameters:
AC Power Supply voltage: 220V/110V
DC Power Supply voltage: 12V to 14,2V
Power Consumption: 30W max

Mechanical Parameters:
Dimensions: 100x223x216 mm (W x D x H)
Weight: < 3.5 kg

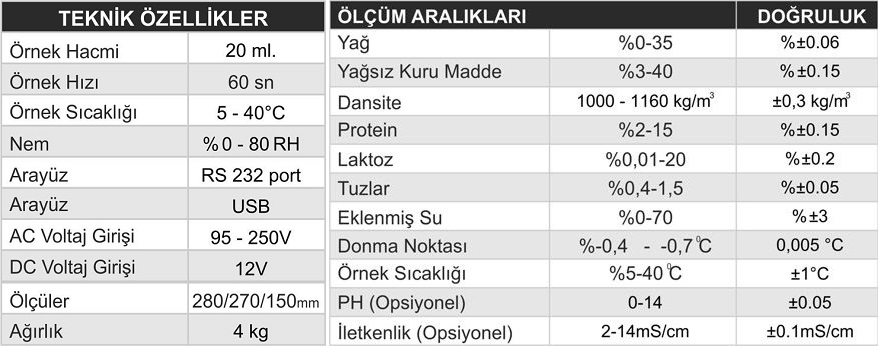

Measuring parameters Analytical range in milk Maximum permissible absolute error
Fat 0,01– 25% ±0,1%
Solids-non-fat (SNF) 3% – 15% ±0,15%
Density 1015 – 1040 kg/m3 ±0,3kg/m3
Protein 2% – 7% ±0,15%
Lactose 0,01% – 6% ±0,2%
Added water 0% – 70% ±3
Milk sample temperature 1°C – 40 °C ±1%
Freezing point –0,4°C — –0,7°C ±0,001%
Salts 0,4% – 1,5% ±0,05%
PH 0 – 14 ±0,05%
Conductivity 3 – 14 [mS/cm] ±0,05%
Total solids 0 –25% ±0,17%
