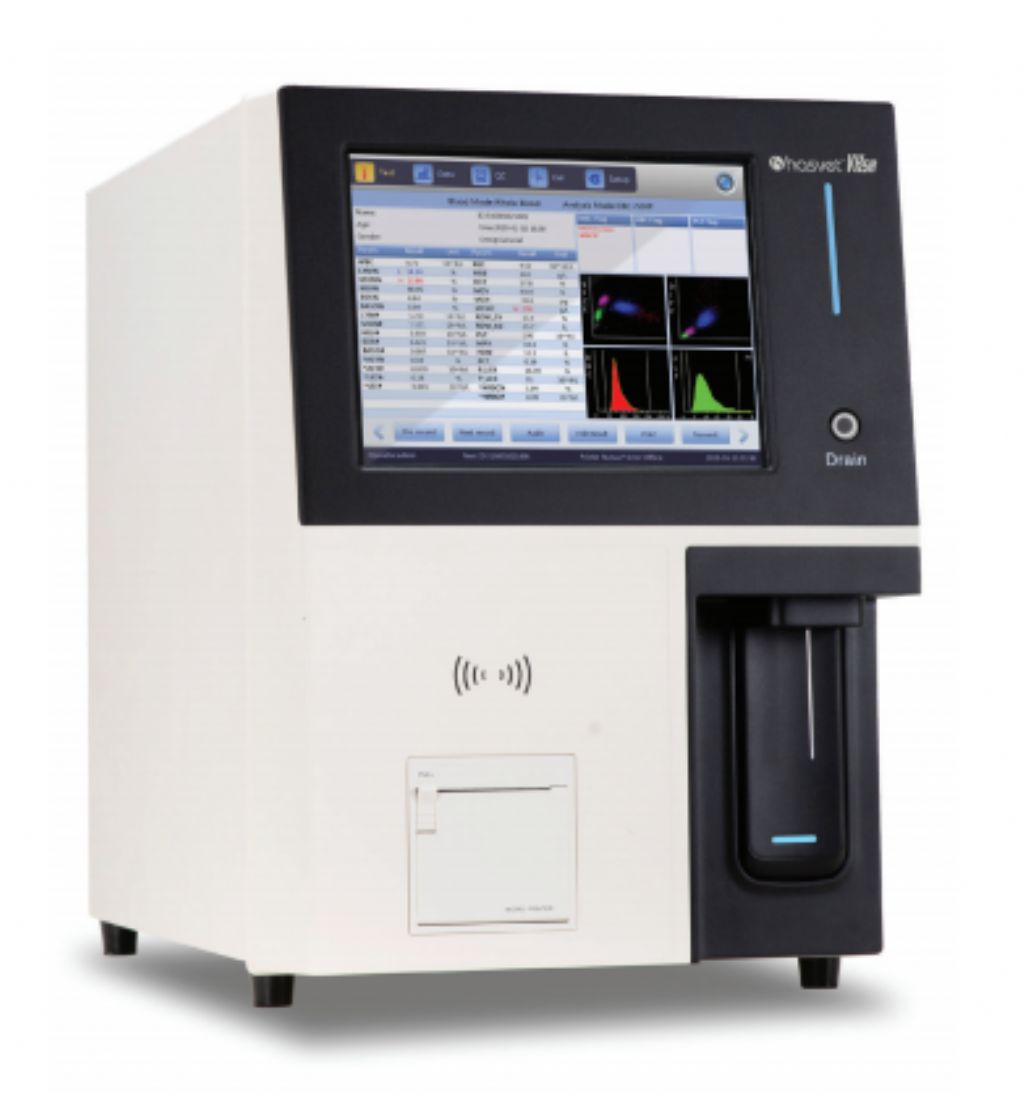

HASVET VH5R VETERINARY BLOOD COUNTING DEVICE

HASVET VH5R VETERINARY BLOOD COUNTING DEVICE

Specifications

29 parameters: WBC, LYM%, MON%, NEU%, EOS%, BASO%, LYM#, MON#, NEU#, EOS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW_CV, RDW_SD, PLT, MPV, PDW, PCT, P_LCR, NRBC%, NRBC, RETIC_ABS, RETIC, IRF

2 Histograms for RBC and PLT

2 Scatter grams: 5-part differential scatter gram

Principles of operation:

WBC/DIFF: Flow Cytometry, Semi-conductor laser light multi-dimensional cell classification

WBC Analysis: Optical and impedance measurements

RBC/PLT Analysis: Impedance method

HGB test: Cyanide-free reagent colorimetry

Reagent: Diluent, Sheath, Detergent, Lyse

Sampling modes: Whole blood : 20μL

                               Pre-diluent : 20μL

Aperture Diameter : WBC 100μm,RBC/PLT 68μm

Throughput: Whole blood : up to 60 samples per hour

                      Pre-diluent : up to 60 samples per hour

Data storage: Up to 200,000 sample results with grams

Alarms: Error messages
