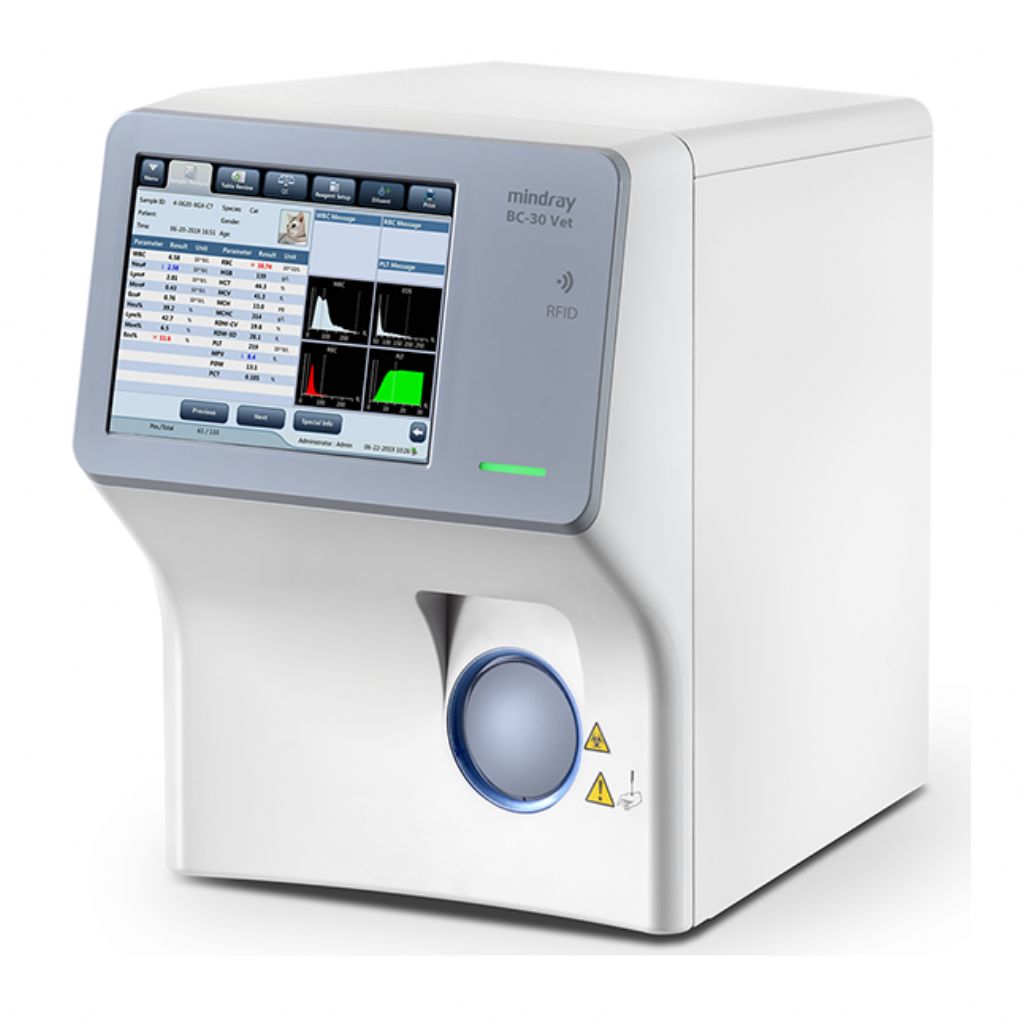

BC-30 Vet Auto Hematology Analyzer Insight and Simplicity

Features:
• CBC+4-DIFF, 23 parameters including Eos#, Eos%.
• Throughput:38 T/H (Temperature ≥25 C)
• Intuitive onboard software with 8.4 inch TFT touch screen
• Temperature control system
• Compact and efficient
• Open vial sampling
• 100,000 results storage with histograms
• Original QC, calibrators and reagents


Technical Specifications:
Principles
• Impedance method for WBC, RBC and PLT counting
• Cyanide free reagent for hemoglobin test

Parameters
• 23 parameters: WBC, Neu#, Neu%, Eos#, Eos%, Lym#, Lym%, Mon#, Mon%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC
• 4 histograms for WBC, EOS, RBC and PLT
*P-LCC and P-LCR only for dog

Species
Dog, Cat, Horse*, Monkey*, Rat*, Mouse*, Rabbit*, Pig*, Sheep*, Cow*, Goat*, Camel*, Llama*+20 self defined animals * Coming soon

Sample Volume
Whole blood mode 9uL

Display
8.4 inch TFT Touch Screen

Communication
LAN Port supports HL7 protocol
Support for bi-directional LIS

Interface
4 USB ports (for external printer, software upgrade, barcode reader, external WIFI, keyboard and mouse), LAN port (1)

Printout
External printer optional

Operating Environment
Temperature: 10°C~30°C
Humidity: 20%~85%
Air pressure: 70kPa~106kPa

Power Requirement
100V-240V
≤180VA
50Hz/60Hz

Dimension and Weight
Dimension: Depth (410 mm) x width (305 mm) x height (400 mm)
Weight: ≤20Kg

Classic Heritage, Intelligence Everywhere
At Mindray we pride ourselves on our dedication and experience in developing better solutions for veterinary labs. With over 20 years of experience in the hematology field, Mindray has always strived to meet and exceed customers' requirements with innovative solutions. The newly launched BC-30 Vet hematology analyzer is the culmination of that effort with true 4 part differentiation. Compact yet powerful, full featured yet affordable.

Innovative Technology, Elevated Quality
Accurate and stable WBC differentiation including Eosinophil using only 2 reagents (Patent No. CN201910531135.3)

Accurate measurement of Eosinophil gives you more diagnostic information
BC-30 Vet utilizes advanced technologies to accurately count Eosinophil
Eosinophilia may suggest allergic reactions (Such as allergies, asthma), parasitic infections, skin diseases, blood system diseases, and other recovery period of infectious diseases, adrenal insufficiency, etc
